Alluvial Gold Mining Vibrating Screen– Heavy-Duty, Wear-Resistant & Efficient Screening
1. Introduction to Vibrating Screens for Alluvial Gold Processing
A vibrating screen is an essential piece of equipment in an alluvial gold washing plant. It is primarily used to screen, classify, and separate raw placer gold-bearing materials according to particle size, helping remove oversized rocks and allowing suitable-sized material to proceed to the next stage of gold recovery.
During alluvial gold processing, raw materials often contain clay, gravel, sand, stones, and gold-bearing sediments. Efficient screening helps improve downstream processing performance by controlling feed size, reducing unnecessary material entering the recovery equipment, and supporting a more stable washing and separation process.

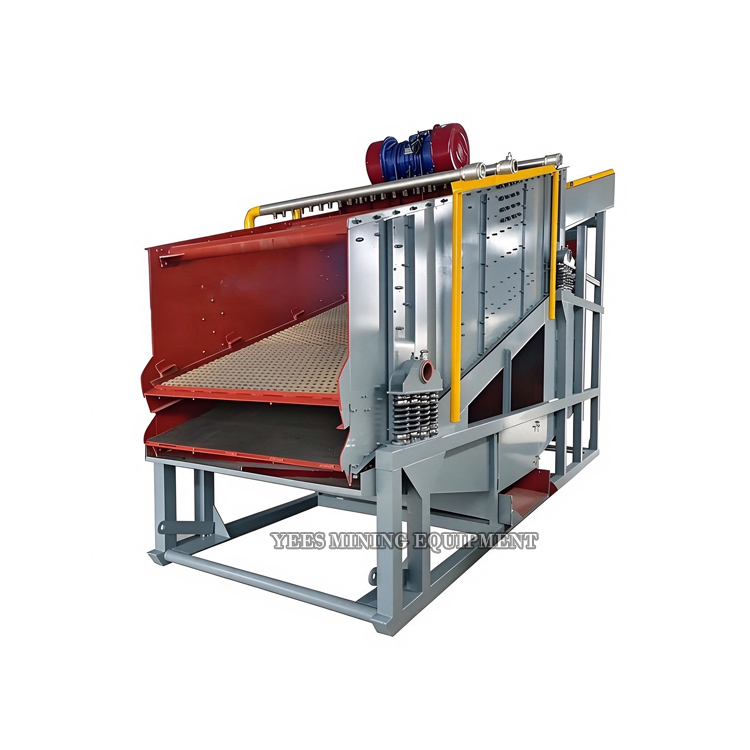

Our heavy-duty vibrating screen is designed for demanding placer gold mining conditions. With a double-deck structure, thickened perforated wear-resistant steel plates, and a reinforced screen box, it is suitable for continuous operation in mining environments where impact resistance, durability, and reliable screening performance are essential.
2. Key Advantages of Our Alluvial Gold Vibrating Screen
Double-Deck Design for Efficient Screening
The vibrating screen features a double-deck structure, allowing materials to be classified at different particle sizes in a single screening operation. Both the upper and lower decks use thickened, perforated, wear-resistant steel plates instead of ordinary lightweight mesh.
This robust design provides reliable screening performance while helping resist abrasion and impact from rocks and gravel. The double-deck configuration can be customized to suit different feed materials and screening requirements.
Heavy-Duty Construction for Direct Excavator Feeding
Alluvial gold deposits often contain large stones and heavy gravel that can cause severe impact during feeding. Our vibrating screen is equipped with a dedicated feed hopper, allowing an excavator to load raw material directly into the machine.
The thickened perforated steel screen plates are designed to withstand demanding working conditions, including repeated impacts from large rocks. This helps reduce damage caused by heavy feeding and improves equipment durability.
Key benefits:
Direct feeding by excavator.
Strong resistance to impact from rocks and gravel.
Wear-resistant screening surfaces.
Reduced dependence on additional feeding equipment.
Suitable for rugged placer mining operations.
Actual feed size and impact limits should be matched to the machine specifications and operating conditions.

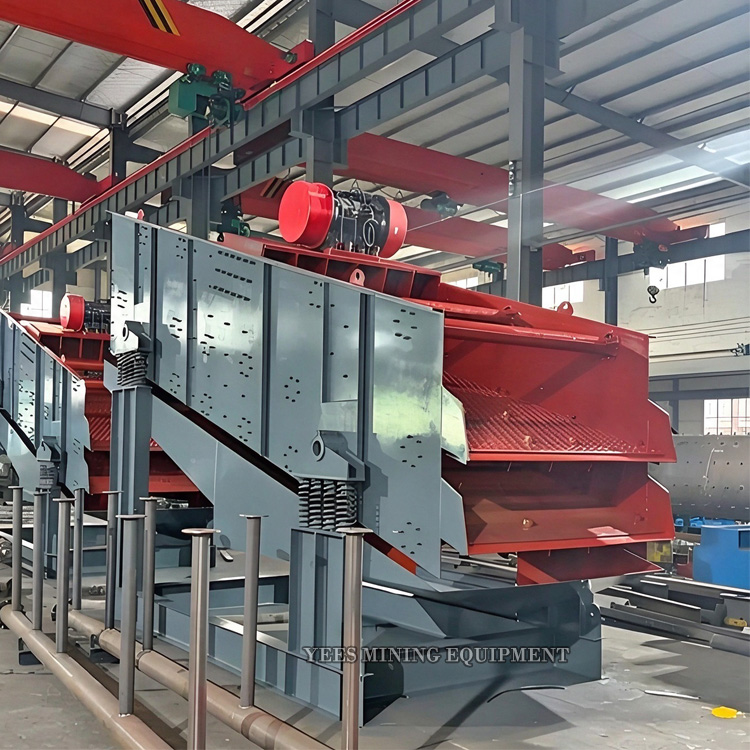

Reinforced Screen Box with High-Strength Riveted Construction
The screen box is manufactured using thickened steel plates and assembled with high-strength rivets to create a robust structural frame.
This heavy-duty construction is designed to withstand continuous vibration and demanding mining conditions while reducing the risk of structural fatigue, cracking, and premature damage.
The reinforced frame provides a reliable foundation for long-term operation in alluvial gold washing plants, helping minimize unplanned maintenance and downtime.
High-Quality Vibration Motors with Adjustable Excitation Force
The machine uses high-quality vibration motors featuring a compact structure and strong excitation force. The vibration system provides stable amplitude to support consistent material movement and screening.
The excitation force can be adjusted steplessly within the equipment's designed operating range, allowing operators to optimize vibration intensity according to feed characteristics, material loading, and screening requirements.
This adjustable design helps improve operational flexibility when processing different combinations of gravel, sand, and gold-bearing sediments.
Multiple Parallel Springs for Stable, Heavy-Duty Operation
The vibrating screen is supported by multiple springs arranged in parallel. This support system helps distribute operating loads, absorb vibration, and maintain stable machine operation.
The multiple-spring arrangement is designed to withstand heavy-duty working conditions while reducing excessive stress on individual springs, helping extend their service life and maintain reliable performance.
Integrated Feed Hopper and Bottom Discharge Chute
The machine is equipped with a feed hopper for convenient excavator loading and a bottom discharge chute for rapid material discharge.
The integrated design simplifies material handling, reduces the need for additional feeding and discharge structures, and makes the equipment easier to incorporate into a complete alluvial gold processing line.
These practical structural features help operators establish a screening system quickly and maintain a more continuous production process.
3. Applications of Vibrating Screens in Alluvial Gold Mining
Our vibrating screens are suitable for a wide range of placer mining and mineral processing applications, including:
Alluvial gold washing plants: Screening gold-bearing gravel and sand before gravity separation.
River placer gold deposits: Separating oversized stones from gold-bearing sediments.
Gold-bearing sand and gravel: Classifying feed material to improve downstream processing conditions.
Clay-bearing placer deposits: Supporting washing and screening circuits when combined with suitable scrubbing or washing equipment.
Small and medium-scale gold mining operations: Providing a practical screening solution for modular and customized processing plants.
Other alluvial mineral projects: Screening feed materials for selected heavy-mineral recovery applications, subject to the required particle-size range and process design.
The appropriate screen aperture should be selected according to the characteristics of the raw material, the size of the target gold particles, and the requirements of the downstream recovery equipment.
It is important to note that a vibrating screen primarily performs screening and classification. It does not independently recover all the gold from the feed material. For better overall recovery, it should be integrated with suitable gravity separation equipment.
4. Complete Alluvial Gold Processing Line: Vibrating Screen + Vibrating Sluice + Sluice Box
For alluvial gold mining projects, a vibrating screen can be combined with a vibrating sluice and a conventional sluice box to form a practical, integrated gold recovery line.
Each piece of equipment performs a different function, creating a complementary process from initial screening to gravity gold concentration.
Step 1: Vibrating Screen – Screening and Feed Preparation

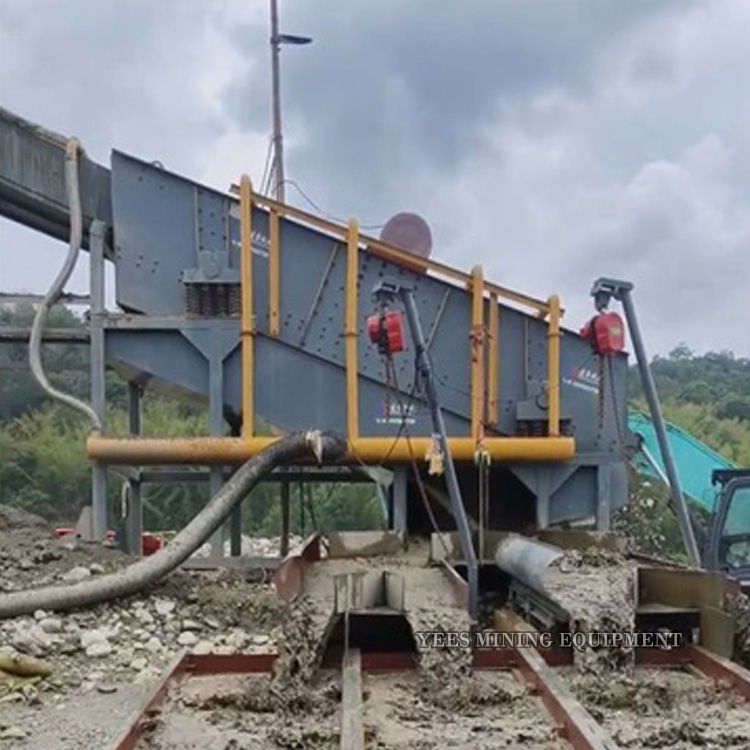

Raw gold-bearing gravel and sand are loaded directly into the vibrating screen using an excavator. The double-deck screening system separates oversized rocks and classifies the feed into suitable size fractions.
This helps protect downstream equipment from excessive coarse material and provides a more consistent feed for the recovery stages.
Where sticky clay is present, additional scrubbing or washing may be required before or during screening, depending on the deposit characteristics.
Step 2: Vibrating Sluice – Enhanced Gravity Gold Recovery
After screening, the suitable-sized gold-bearing material is directed to the vibrating sluice, also known as a pulsating sluice.
The combination of flowing water and controlled vibration promotes particle movement and stratification. Dense gold particles can be preferentially retained in the recovery medium while lighter sand and gangue continue moving downstream.
Compared with relying on a conventional sluice box alone, a properly designed vibrating sluice can provide an additional recovery stage for suitable gold-bearing materials, particularly where improved capture of fine or difficult-to-retain particles is required.
Actual recovery performance depends on gold particle size and shape, feed rate, slurry concentration, water flow, and operating settings.
Vibrating sluice introduction: https://yeesmachine.com/Product/484.html
Step 3: Sluice Box – Continuous Gravity Concentration
The material or tailings stream selected by the process design can then enter a conventional sluice box for further gravity recovery.
The sluice box uses flowing water and a suitable trapping surface or mat to retain dense gold particles while lighter materials are washed away.
It offers a simple structure, continuous operation, and convenient integration into placer gold washing plants. Depending on the circuit arrangement, it can serve as a primary recovery unit, a secondary recovery stage, or a scavenging unit to capture residual gold.
The exact connection between the vibrating sluice and sluice box should be determined through testing and process design to avoid unnecessary material recirculation or loss of fine gold.
Sluice box introduction: https://yeesmachine.com/Product/486.html
Main Advantages of the Combined Processing Line
1. Complementary equipment functions
The vibrating screen handles screening and size classification, while the vibrating sluice and sluice box focus on gravity gold recovery. This division of functions creates a more organized processing workflow.
2. Improved feed preparation
Removing oversized rocks before gravity separation helps reduce unnecessary loading on downstream equipment and supports more stable operation.
3. Flexible recovery circuit
The equipment combination can be configured according to deposit characteristics, target gold particle size, and production requirements. Additional washing, desliming, or concentration equipment can be incorporated when necessary.
4. Practical and straightforward operation
The equipment can be arranged into a compact processing line, simplifying material transfer and daily operating procedures when appropriately designed.
5. Adaptable to different placer mining projects
The system can be customized for river gold deposits, alluvial gravel, gold-bearing sand, and other suitable placer materials. Capacity, screen apertures, sluice dimensions, water requirements, and recovery surfaces can be selected according to project conditions.
6. Potentially lower operating and installation costs
The combination can offer a practical solution for mining projects seeking a straightforward gravity recovery process. Actual cost savings depend on plant capacity, site conditions, water management, maintenance requirements, and the recovery target.
5. Why Choose Our Vibrating Screen?
Our vibrating screen is designed around the demanding requirements of alluvial gold mining, combining robust construction with practical operating features.
Double-deck screening: Two screening levels for flexible material classification.
Thickened perforated steel plates: Wear-resistant screen surfaces designed for heavy-duty service.
Excavator-compatible feed hopper: Convenient direct feeding of raw placer material.
Reinforced screen box: Thick steel plate construction with high-strength riveted assembly.
Reliable vibration system: High-quality vibration motors with strong excitation force and stable amplitude.
Adjustable vibration intensity: Stepless excitation-force adjustment within the designed operating range.
Multiple parallel springs: Stable support for heavy-duty operation and improved spring service life.
Integrated bottom discharge chute: Convenient material discharge and straightforward plant integration.
Customizable configuration: Screen apertures and equipment specifications can be selected to suit different processing requirements.
6. YEES Mining Equipment – Your Partner for Alluvial Gold Processing Solutions
YEES Mining Equipment Co., Ltd. specializes in the manufacture of mineral processing and gravity separation equipment, providing practical solutions for alluvial gold washing plants and other mineral recovery projects.
Our product range includes vibrating screens, rotary scrubbers, trommel screens, vibrating sluices, sluice boxes, jigs, shaking tables, centrifugal concentrators, spiral chutes, and other gravity separation equipment.
We can customize equipment configurations and complete processing lines according to raw material characteristics, target capacity, gold particle size, site conditions, and recovery requirements.
Whether you need a heavy-duty vibrating screen or an integrated alluvial gold washing plant combining a vibrating screen, vibrating sluice, and sluice box, our team can help you select a suitable equipment configuration for your project.
YEES Mining Equipment – Reliable Equipment, Heavy-Duty Construction, and Customized Solutions for Alluvial Gold Recovery.
